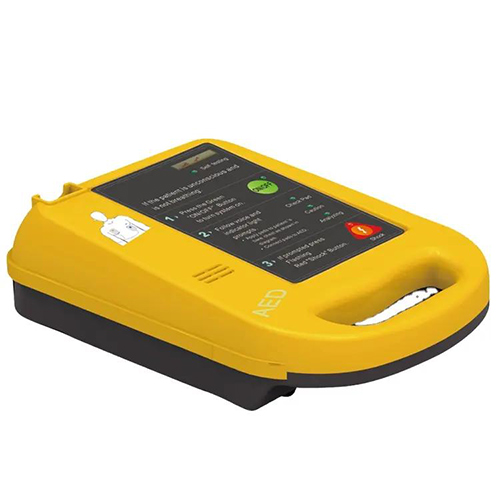

AED X7 Automatic External Defibrillator

AED X7

Automatic External Defibrillator

• Three-step defibrillator process
• Two-button operation
• Extensive voice and visual prompts for the operator
• Biphasic energy output
• Lock-out protection to prevent inadvertent defibrillation
• Automatic Self-test: Daily battery condition test & Monthly AED whole inter system test
• Compact design with light weight (2KG only), convenient for rescuers take and use it.
• Streamline design, the voice and light visual guide to rescuers rescue step by step
• Reliable and durable : standby time for 5 years
• Export tp EU for more then 10 years

Efficient and safe guidance

Voice prompt operation, low energy biphasic wave, ensure the effective treatment at the same time reduce the myocardial damage\

Metronome 100times/min

Secure storage, professional reviews

ECG and voice are stored synchronous to provide comprehensive and reliable information on the site

Patent advantage

2 patents for an invention about judgment method of chest compression intensity and quick charge

1 patent for utility models

3 software copyrights about first-aid command, AED long-distance, self-maintenance ect.

Innovation about defibrillation, pacing, CPR validity detection technique, long-distance guide

Technical Specification

Output: Biphasic Truncated exponential

Energy Sequence: 150, 150, 200J

Charge time: 8sec to 150J

10sec to 200J (new battery)

Analysis time: 9 sec

The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery: Less than 20seconds

The maximum time from the initiation of rhythm analysis to readiness for discharge after 6 shocks: Less than 25 seconds.

The maximum time from the initiation switching power on to readiness for discharge: Less than 30seconds.

Audible Prompts: 22 audible prompts

Visual Prompts: LED prompts; Automatic Self-test

Controls: two buttons -on/off , shock

Output energy accuracy: ±15% to any impedance from 25 to 175Ω

The Maximum Voltage : 1200±50V

Output disabled when the patient impedance is outside limits: 20 to 200Ω

Battery backup:

Part No: CR123A-4X2

Non-rechargeable: 12V D.C, 2.8Ah battery

Capacity: 100 dischages at 200Joules or 120 discharges at 150 Joules

Shelf life(25°C±15°C)

Weight & Dimensions

Dimension: 303 x 216 x 89 mm

Netweight: 2.0kg

Operation Environment

Power: AC 100-240V, 50/60Hz

Temperature: 0°C～40°C

Humidity: relative humidity between 30%-95%(non-condensing)

Transport and storage temperature

Temperature: -20～55degree

Humidity:<93% (non-condensing)
