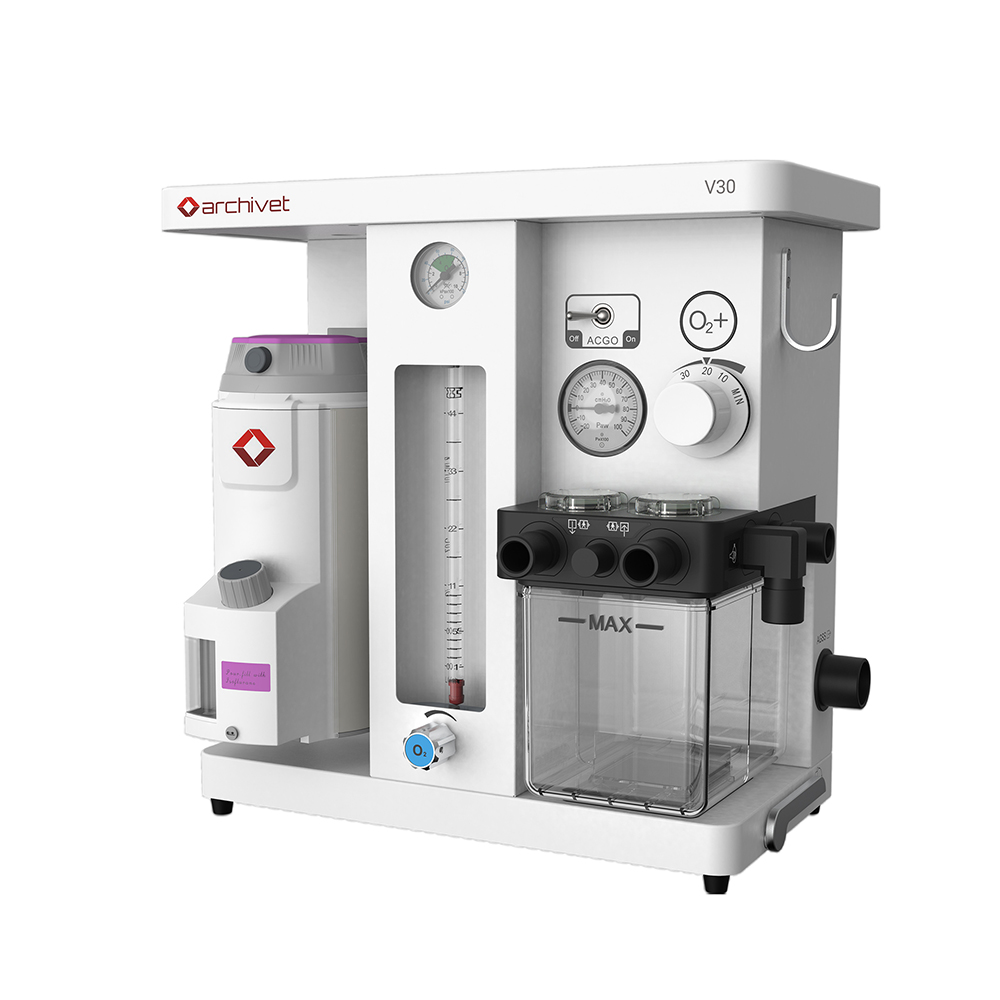

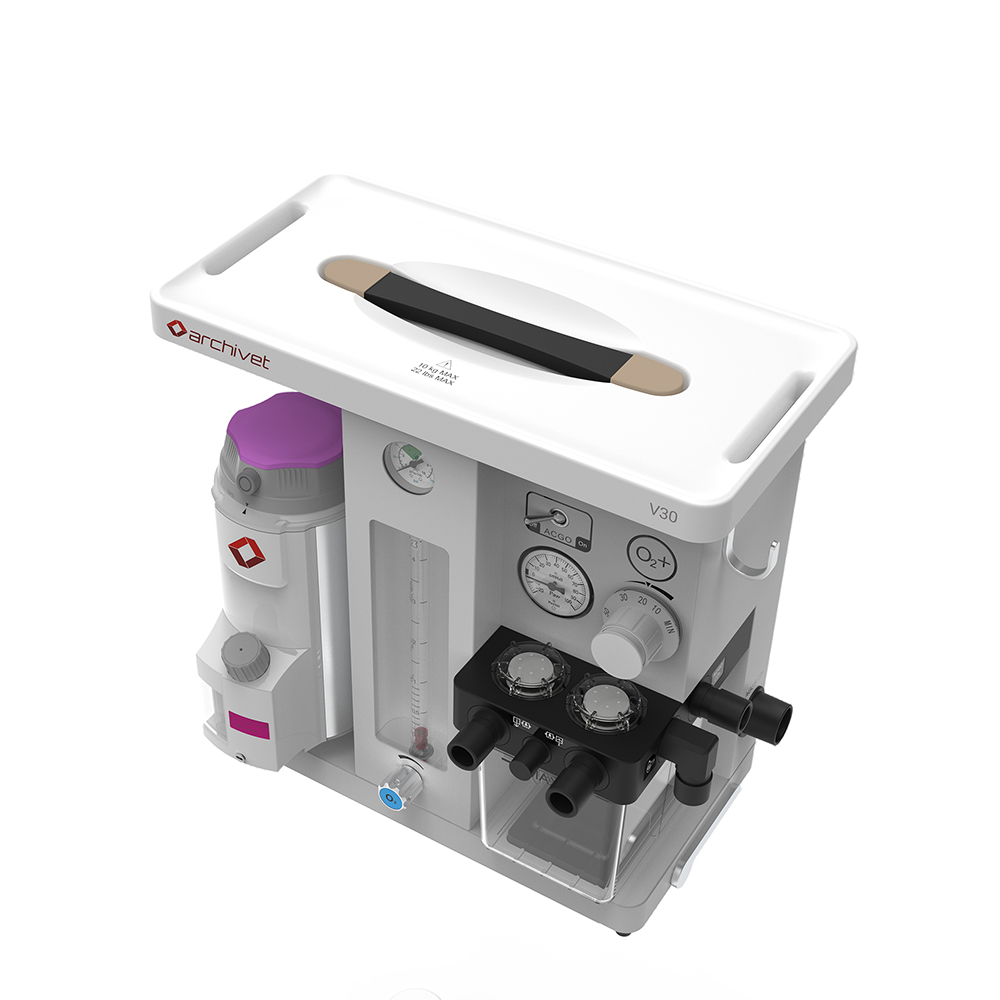

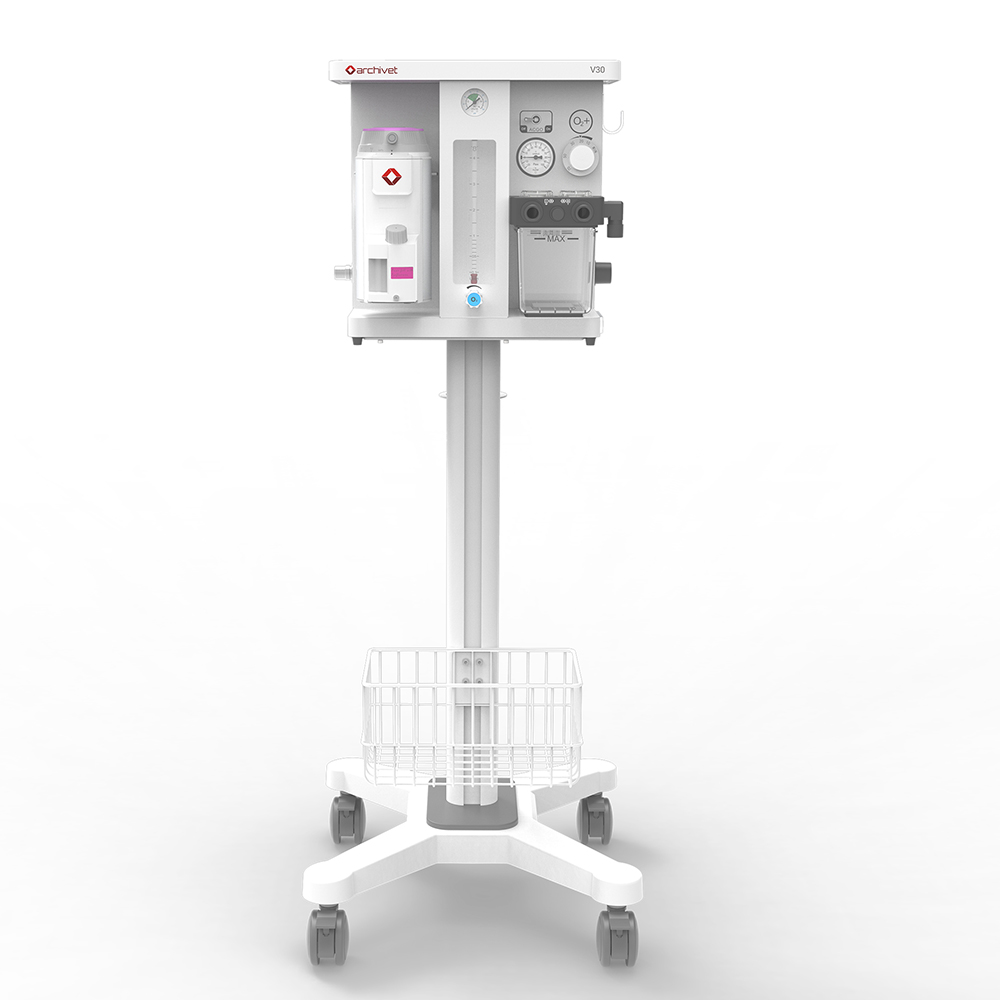

V30 Veterinary Anesthesia machine
Technical specification:
Specification of gas circuit system
Gas Supply: O2
Air Source pressure range: 280-600kPa/40-87psi
Oxygen Inlet Port Type: NIST/DISS
Air source pressure gauge: 0-1Mpa/0-140psi
Air Source Safety valve: built in
Flowmeter: Mechanical type-1 flow tubes for O2
Flowmeter adjustment range: 0-4L/min
Rapid Oxygen supply: 25L/min-75L/min
Respiratory system specification
Air Airway pressure gauge scope: -20~ 100cmH2
APL valve scope: 0cmH2O ~ 70cmH2O, with one key closing button.
Co2 canister: 1.4L
ACGO: standard
Vapirzer(Optional):
Position for vaporizer : 1
Vaporizer mounting system: selectatec, interlock
Type: Isoflurane (Pour-fill, Key-fill, Easy-fill)
Isoflurane (Pour-fill, Key-fill, Easy-fill)
Isoflurane (Pour-fill, Key-fill, Easy-fill)
AGSS (Optional)
Port Type: 30mm Conical joint (external)
Waste gas canister <80mm, <2KG
Gas supply: Oxygen
Weight (without vaporizer and stand): <10KG
Dimensions (without vaporizer and stand): 385*405*265mm
Maximum load on top: 10KG
Optional:
Oxygen Pressure Alarm device
BN30 Bain Block
Vaporizer
