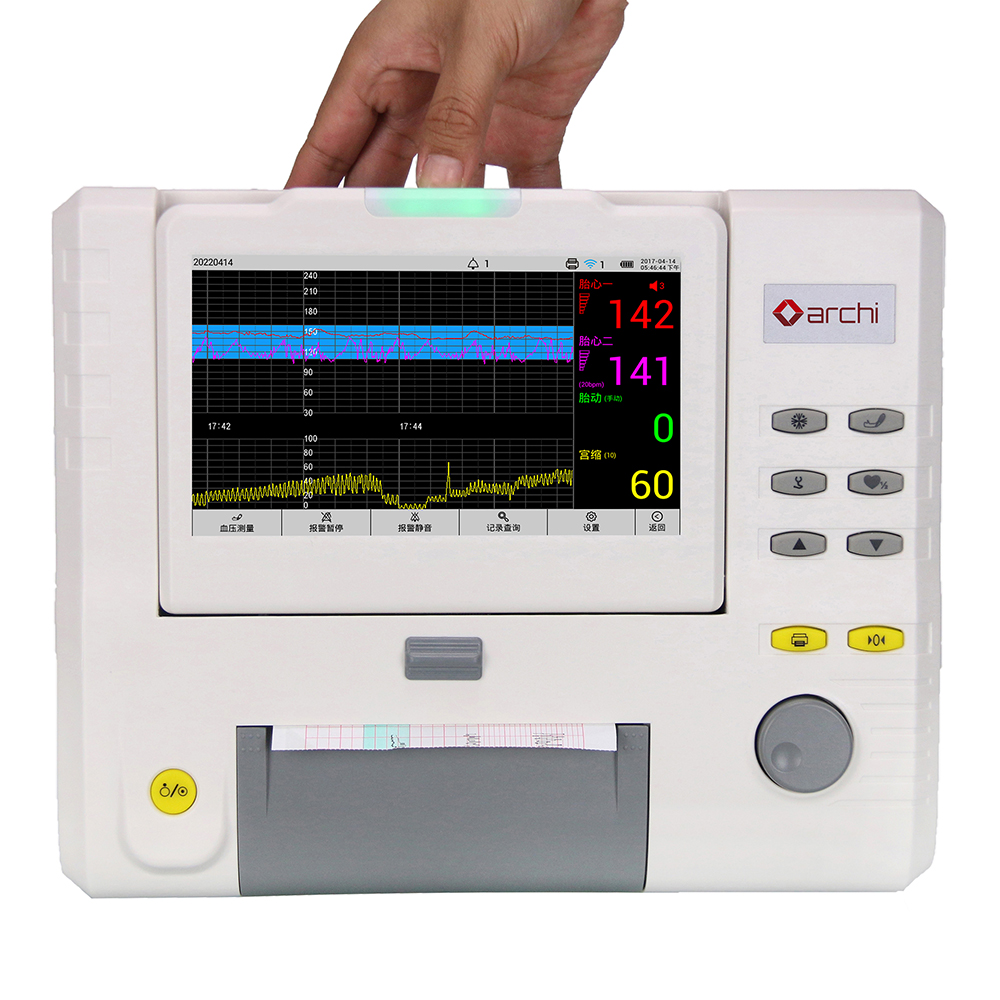

FM X7 Fetal & Maternal Monitor

FM X7 Fetal/Maternal Monitor for Antepartum, Intrapartum and Postpartum

Economic, strong and reliable.

• Android system
• 7 inch color TFT Touch Screen, 90 degree foldable
• Built-in 110mm thermal printer
• Direct HP Laser printer connection and print output(Model: HP1020 Pluse, HP P1102 and HP M12A)
• Direct PDF export in A4/B5 size via central station(Optional)
• Longtime data storage (40000hrs) and printout
• Sensitive probe (9 crystal , 1Mhz), DSP technology, accurate, reliable FHR monitoring
• CTG Scoring system: Krebs score/Fischer Score/ACGO/NS-CTS/OCT/CST
• Automatic fetal movement detection and accounting
• Short time variance analysis, Clinical event analysis
• Twins FHR overlap alarming.
• Wireless probe, support long distance monitoring (Optional)
• Fetus signal strength indicator
• Rechargeable Lithium-ion Battery (2200mAH)

Configuration:

• FHR1, TOCO, FM, Touch Screen, Networking
• 112mm Printer

Optional:

• FHR 2, Fetus waker,
• Wireless FHR/TOCO/FM （Wireless box）
• Maternal Parameter: NIBP, Spo2, PR
• Trolley, Wall Mount

Technical Specification

Display:

Size: 7 inch TFT Touch Screen

Resolution:480*800

Fetal Heart Rate (FHR)

Parameter: FHR1, FHR2 (optional)

Measurements range: 30-240bpm/30-250bpm/50-210bpm

Accuracy: ±2bpm

Sweep speed: x1, x2, x4, x8

FHR Probe: Pulsed doppler (9 crystals)

Working frequency: 1.0MHz

Strength: <5mW/cm2

Wired/Wireless (optional)

Uterine Activity (TOCO)

Measurement Range: 0-100units

Baseline: 0, 5, ,10,15,20 (selectable)

NIBP (Optional)

Measurement method: Automatic oscillometric method

Operating mode: Manual, automatic, continuous

Measurement unit: mmHg/kPa selectable

Measurement type: Systolic, Diastolic, Mean

Measurement range

Range of Systolic pressure:   50-240mmHg (6.7kPa-32.0kPa)

Range of Diastolic pressure:  15-180 mmHg (2.0kPa-24.0kPa)

Range of Mean pressure:     25-200 mmHg (3.4kPa-26.6kPa)

Measurement accuracy

Maximum average error: ±5mmHg

Maximum standard deviation: ±8mmHg

Resolution: 1mmHg

Interval: 3, 5, 10 ,20, 30, 60, 90, 120, 240, 480minutes

Overpressure protection: Software and hardware, double safety protection.

Cuff pressure range: 0-300mmHg (0kPa-40.0kPa)

Spo2 (Optional)

Measurement range: 70-99%

Resolution: 1%

Accuracy: ±3% (70-100%)

Refreshing Rate: 1s

Pulse Rate

Range: 30-240bpm

Resolution: 1bpm

Accuracy: ±2bpm(non-motion)

±5bpm(motion)

Refreshing rate: 1s

Printer:

Type : Built-in thermal recorder, Thermal dot array, 150mm,

Print mode: Real-time recording, timed recording, selectable trends printing.

Paper speed: 1,2,3cm/min

Number of waveform channels: 3

Laser HP printer connection support (Model: HP1020 Pluse, HP P1102 and HP M12A)

Alarm:

Tachycardia, bradycardia alarm, lack of paper, low battery, network disconnection , probe off, high-low limit alarm.

Data storage

4000hours trend graph of fetal parameters.

Speaker:

2 Speakers,

Power : 1W

Battery backup:

Maximum 4hrs of continuous monitoring of FHR and TOCO

(2200mAh/14.8V , Li-ion battery)

Weight & Dimensions

Dimension: 295(D) x 240(W) x 73(H) mm

Netweight: 1.75KG

Operation Environment

Power: AC 100-240V, 50/60Hz

Temperature: 5～40 degree

Humidity:<80%

Atmospheric pressure: 86kPa ～106kPa

Transport and storage temperature

Temperature: -10～55degree

Humidity:<93%

Atmospheric pressure: 86kPa ～106kPa
