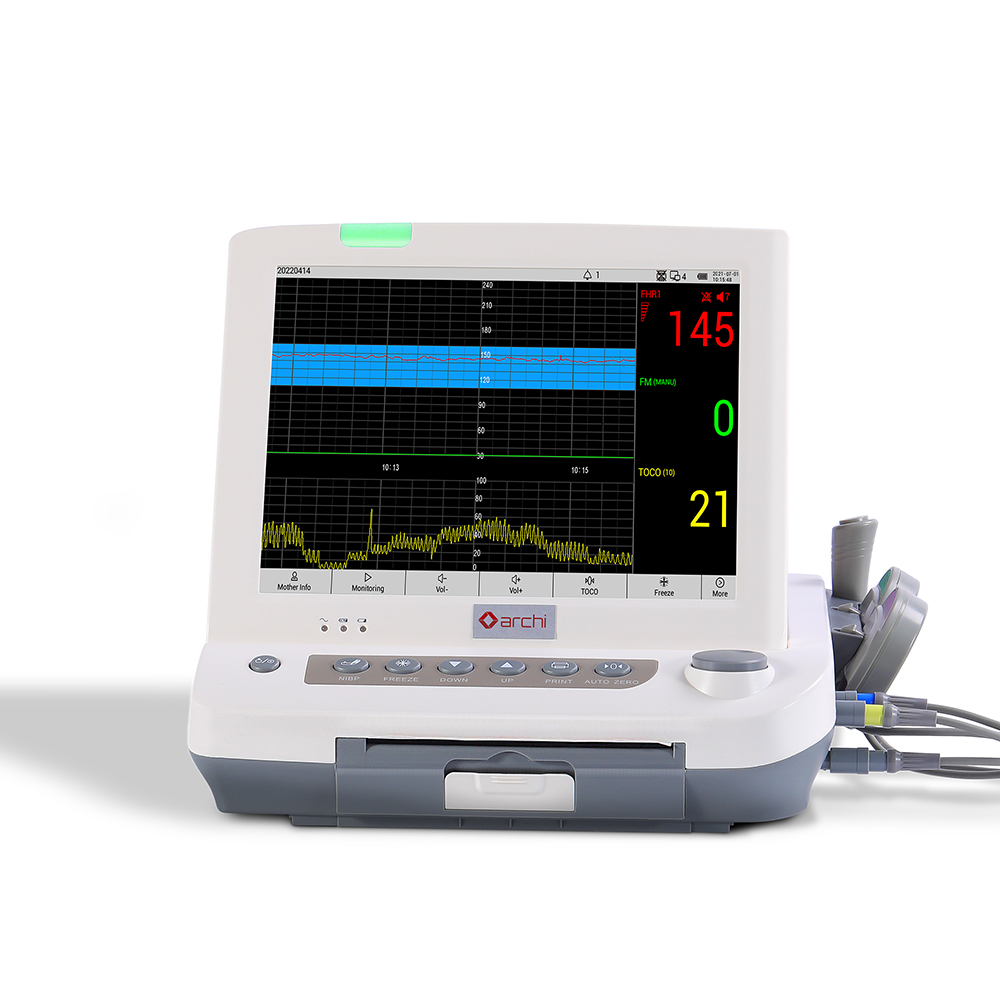

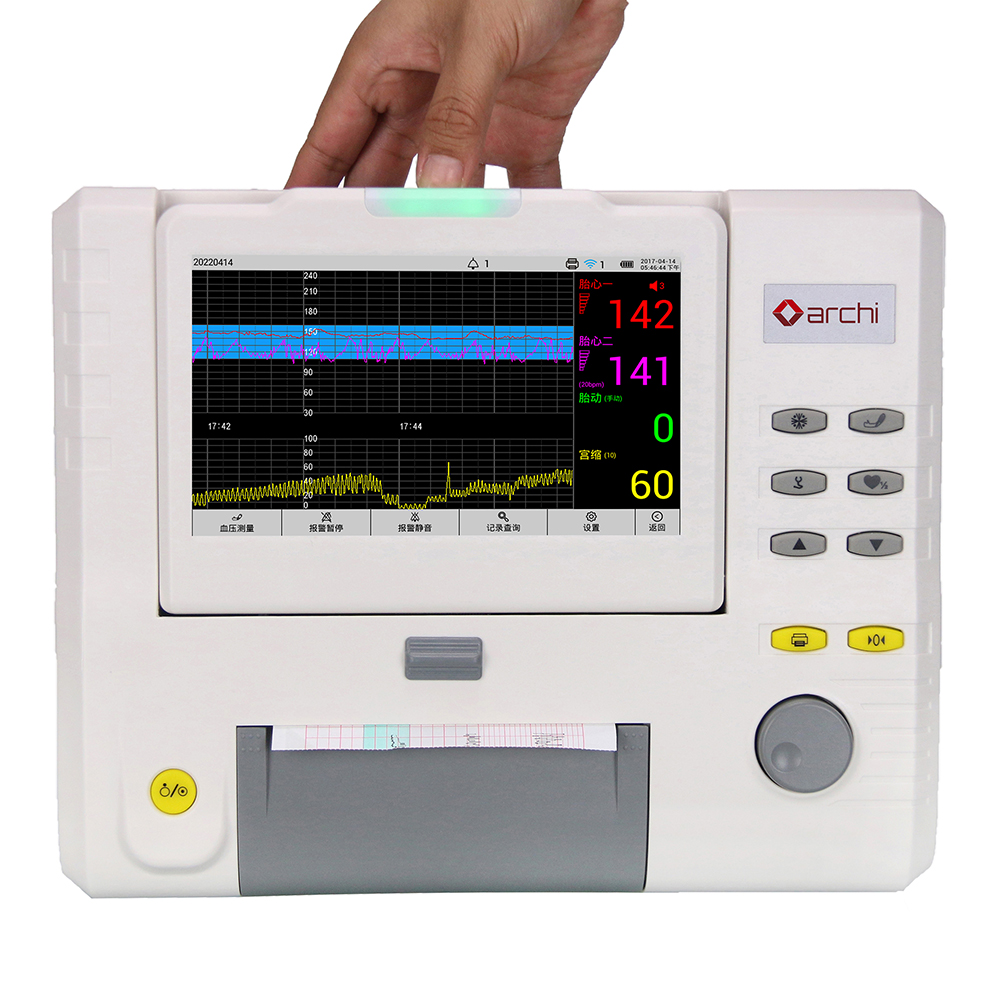

Obsteric Monitor

FM X12

Fetal/Maternal Monitor for Antepartum, Intrapartum and Postpartum

With flexible configuration and reliable &strong features.

• Android system
• 12 inch color TFT Touch Screen, 90 degree foldable
• Built-in 110mm thermal printer
• Direct HP Laser printer connection and print output(Model: HP1020 Pluse, HP P1102 and HP M12A)
• Direct PDF export in A4/B5 size via central station(Optional)
• Longtime data storage (40000hrs) and printout
• Sensitive probe (9 crystal , 1Mhz), DSP technology, accurate, reliable FHR monitoring
• CTG Scoring system: Krebs score/Fischer Score/ACGO/NS-CTS/OCT/CST
• Automatic fetal movement detection and accounting
• Short time variance analysis, Clinical event analysis
• Twins FHR overlap alarming.
• Wireless probe, support long distance monitoring (Optional)
• Fetus signal strength indicator
• Rechargeable Lithium-ion Battery (2200mAH)

Configuration:

• FHR1, TOCO, FM, Touch Screen, Networking
• 150mm Printer

Optional:

• FHR 2, Fetus waker,
• Wireless FHR/TOCO/FM （Wireless box）
• Maternal Parameter: ECG, NIBP, Spo2, TEMP, PR, RESP,HR
• Trolley, Wall Mount

Technical Specification

Display:

Size: 12 inch TFT Touch Screen

Resolution:600*800

Fetal Heart Rate (FHR)

Parameter: FHR1, FHR2 (optional)

Measurements range: 30-240bpm/30-250bpm/50-210bpm

Accuracy: ±2bpm

Sweep speed: x1, x2, x4, x8

FHR Probe: Pulsed doppler (9 crystals)

Working frequency: 1.0MHz

Strength: <5mW/cm2

Wired/Wireless (optional)

Uterine Activity (TOCO)

Measurement Range: 0-100units

Baseline: 0, 5, ,10,15,20 (selectable)

Nonlinear error: ±10%

ECG

Lead type: 5-lead

Lead Selection: RA, LA, RL, LL, V

Heart Rate range: 15bpm-300bpm

Accuracy: ±1bpm or ±1% whichever is greater

ECG waveform: 2channels, 7 channels, 12 channels

Display sensitivity: 2.5mm/mV(x0.25), 5mm/mV(x0.5), 10mm/mV(x1.0), 10mm/mV(x1.0),

Wave sweep speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth

Diagnostic mode: 0.05Hz~100Hz

Monitor mode: 0.5Hz~40Hz

Surgery mode: 1Hz~20Hz

Strong filter mode: 5Hz~20Hz

CMRR >100dB

Notch: 50/60Hz notch filter can be set to on or off

Different input impedance >5 MΩ

Electrode polarization voltage range: ±400mV

Baseline recovery time <3s after defibrillation (in monitor and surgery mode)

Calibration signal: 1mV(peak-peak)

Accuracy: ±3%

RESP

Measurements method: Thoracic electrical bioimpedance

Rate: 7-120bpm

Accuray: ±2bpm or ±2% whichever is greater

Measuring lead: Lead I, II

Wave gain: x0.25, x0.5, x1, x2

Respiratory impedance range: 0.5-5Ω

Baseline impedance: 500-4000Ω

Gain: 10 grades

Scan speed: 6.25mm/s, 12.5mm/s, 25mm/s

TEMP(Optional)

Accuracy: ±0.1 °C or ±0.2 °C °F (without probe)

Measurement range: 0~50 °C

Channel: Two channels
Resolution: 0.1 °C

Parameters: T1,T2

NIBP (Optional)

Measurement method: Automatic oscillometric method

Operating mode: Manual, automatic, continuous

Measurement unit: mmHg/kPa selectable

Typical measurement time: 20-40s

Measurement type: Systolic, Diastolic, Mean

Measurement range

Range of Systolic pressure:   50-240mmHg (6.7kPa-32.0kPa)

Range of Diastolic pressure:  15-180 mmHg (2.0kPa-24.0kPa)

Range of Mean pressure:     25-200 mmHg (3.4kPa-26.6kPa)

Measurement accuracy

Maximum average error: ±5mmHg

Maximum standard deviation: ±8mmHg

Resolution: 1mmHg

Interval: 3, 5, 10 ,20, 30, 60, 90, 120, 240, 480minutes

Overpressure protection: Software and hardware, double safety protection.

Cuff pressure range: 0-300mmHg (0kPa-40.0kPa)

Spo2 (Optional)

Measurement range: 70-99%

Resolution: 1%

Accuracy: ±2% (70-100%, Adult/Pediatric)

0-69%, unspecified

Refreshing Rate: 1s

Pulse Rate

Range: 30-240bpm

Resolution: 1bpm

Accuracy: ±2bpm(non-motion)

±5bpm(motion)

Refreshing rate: 1s

Printer:

Type : Built-in thermal recorder, Thermal dot array, 150mm,

Print mode: Real-time recording, timed recording, selectable trends printing.

Paper speed: 1,2,3cm/min

Number of waveform channels: 3

Laser HP printer connection support (Model: HP1020 Pluse, HP P1102 and HP M12A)

Alarm:

Tachycardia, bradycardia alarm, lack of paper, low battery, network disconnection , probe off, high-low limit alarm.

Data storage & export:

4000hours trend graph of fetal parameters.

Speaker:

2 Speakers,

Power : 1W

Battery backup:

Maximum 4hrs of continuous monitoring of FHR and TOCO

(2200mAh/14.8V , Li-ion battery)

Weight & Dimensions

Dimension: 350(L) x 320(W) x 85(H) mm

Netweight: 3.5KG

Operation Environment

Power: AC 100-240V, 50/60Hz

Temperature: 5～40 degree

Humidity:<80%

Atmospheric pressure: 86kPa ～106kPa

Transport and storage temperature

Temperature: -10～55degree

Humidity:<93%

Atmospheric pressure: 86kPa ～106kPa
