Handheld Vital Signs Monitor

Category： Patient Monitor
Product description：Portable Vital Signs Monitor, Vital Signs Monitor, Patient Monitor, Pulse Oximeter
INQUIRY EMAIL

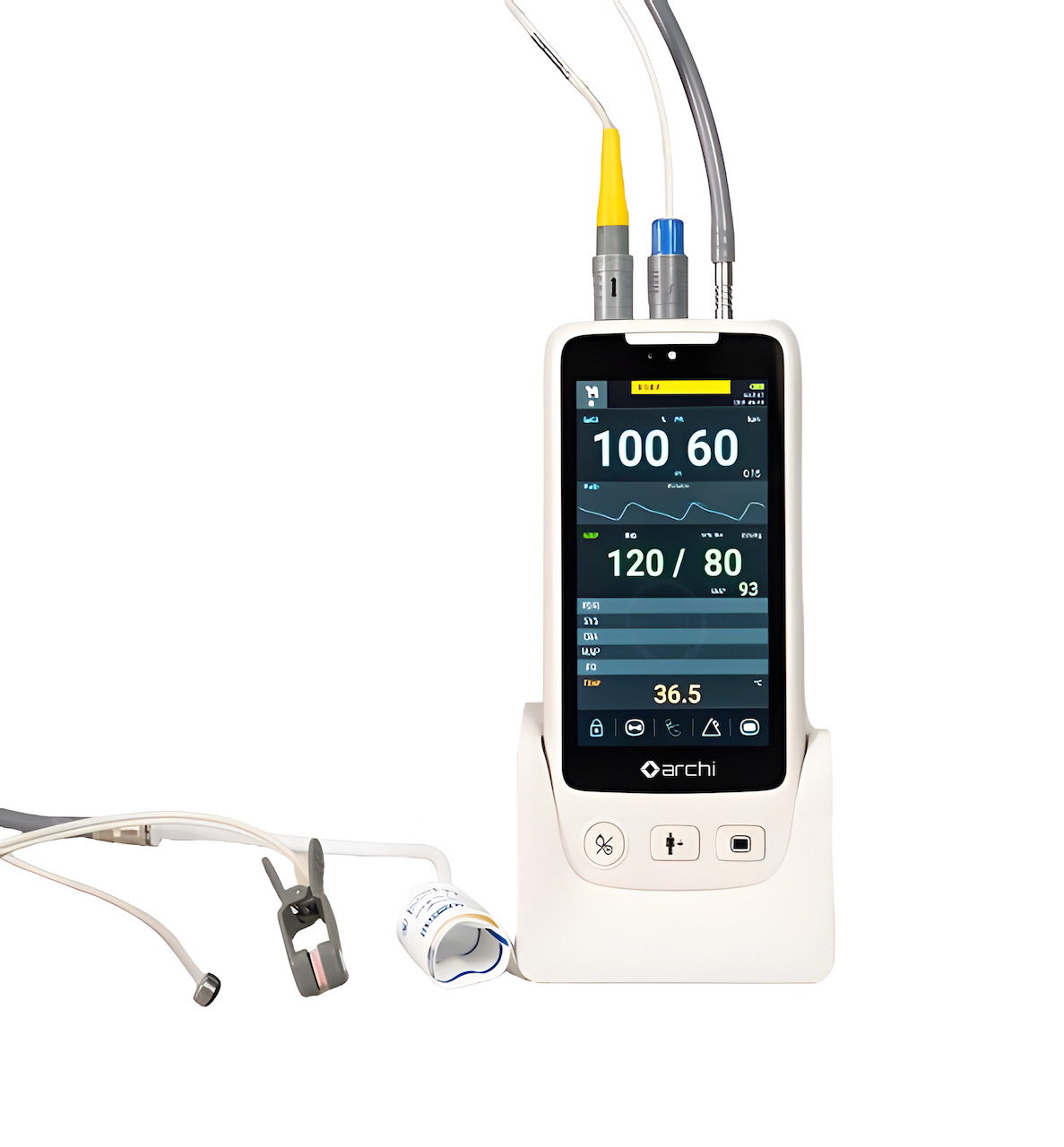

PM X5 Handheld Vital Signs Monitor

Features

Meet the diverse needs of customers

Configuration A	Spo2/
Configuration B	Spo2 +TEMP(infrared ear temp)
Configuration C	Spo2+TENP+NIBP
Configuration D	Spo2+NIBP+RESP
Configuration E	Spo2+NIBP+Co2 main stream/side stream
Configuration F	Spo2+NIBP+TEMP+Co2 main stream

Advanced Measurement Technology

Perfect Spo2 performance, low blood oxygen perfusion can be measured as low as 0.075%
Anti-motion
Masimo Spo2 configurable
Display the PI(perfusion index) to help medical staff judge the reliability of Spo2 measurement
Deliciated spot check mode, and direct data transmission to the hospital server via HL7, great improving work efficiency.
One touch QR code scanning to obtain patient information and ultrafast receive patients
Advanced infrared ear temp measurement to accurately and quickly obtain the temp and improve clinical efficiency

Powerful Data Function

Large capacity data storge for 20 days; 256patients and 30000 sets patient date can be storage
Visualization of the trend of Spo2 and PR for up to 120

Technical Specification

Application	ADU/PED/NEO
Item Size	1758532mm
Screen Size	5’’ LED screen
Resolution	480*854
Configuration	Configuration A		Spo2/
	Configuration B		Spo2 +TEMP(infrared ear temp)
	Configuration C		Spo2+TENP+NIBP
	Configuration D		Spo2+NIBP+RESP
	Configuration E		Spo2+NIBP+Co2 main stream/side stream
	Configuration F		Spo2+NIBP+TEMP+Co2 main stream
Spo2	Range	0-100%
	Accuracy	±2% (70%～100%）
TEMP	Range	0°C～40°C
	Accuracy	±0.2 °C (15°C～44°C)
NIBP	Principle	Oscillation method
	Mode	Manual /Automatic / Continuous
	SYS	Adult	30mmHg～260mmHg
		Pediatric	30mmHg～230mmHg
		Neonate	30mmHg～135mmHg
	Dia	Adult	10mmHg～220mmHg
		Pediatric	10mmHg～220mmHg
		Neonate	10mmHg～110mmHg
	Map	Adult	20mmHg～235mmHg
		Pediatric	20mmHg～235mmHg
		Neonate	30mmHg～125mmHg
Cuff Pressure	Range	0mmHg～300mmHg
	Accuracy	±3mmHg
Pulse Rate	Range	40bpm～240bpm
	Accuracy	±1% or ±2bpm whichever is greater
Co2	Range	0mmHg～150mmHg
	Accuracy	±2mmHg(0mmHg～40mmHg)
		±5mmHg(41mmHg～100mmHg)
		±8mmHg(101mmHg～150mmHg)
Respiratory rate	Range	0～150rpm
	Accuracy	± 2rpm
Sampling flow	50ml/min
