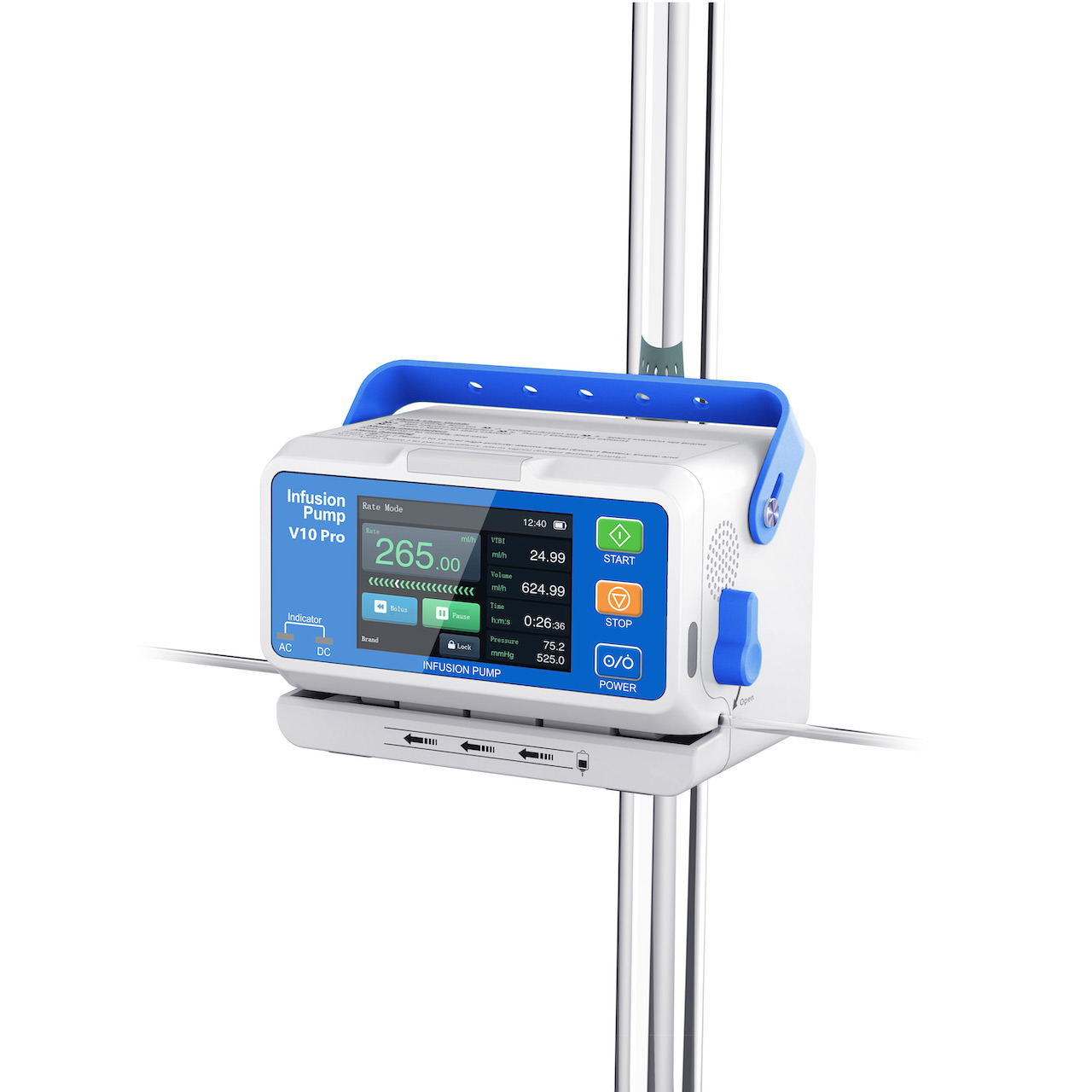

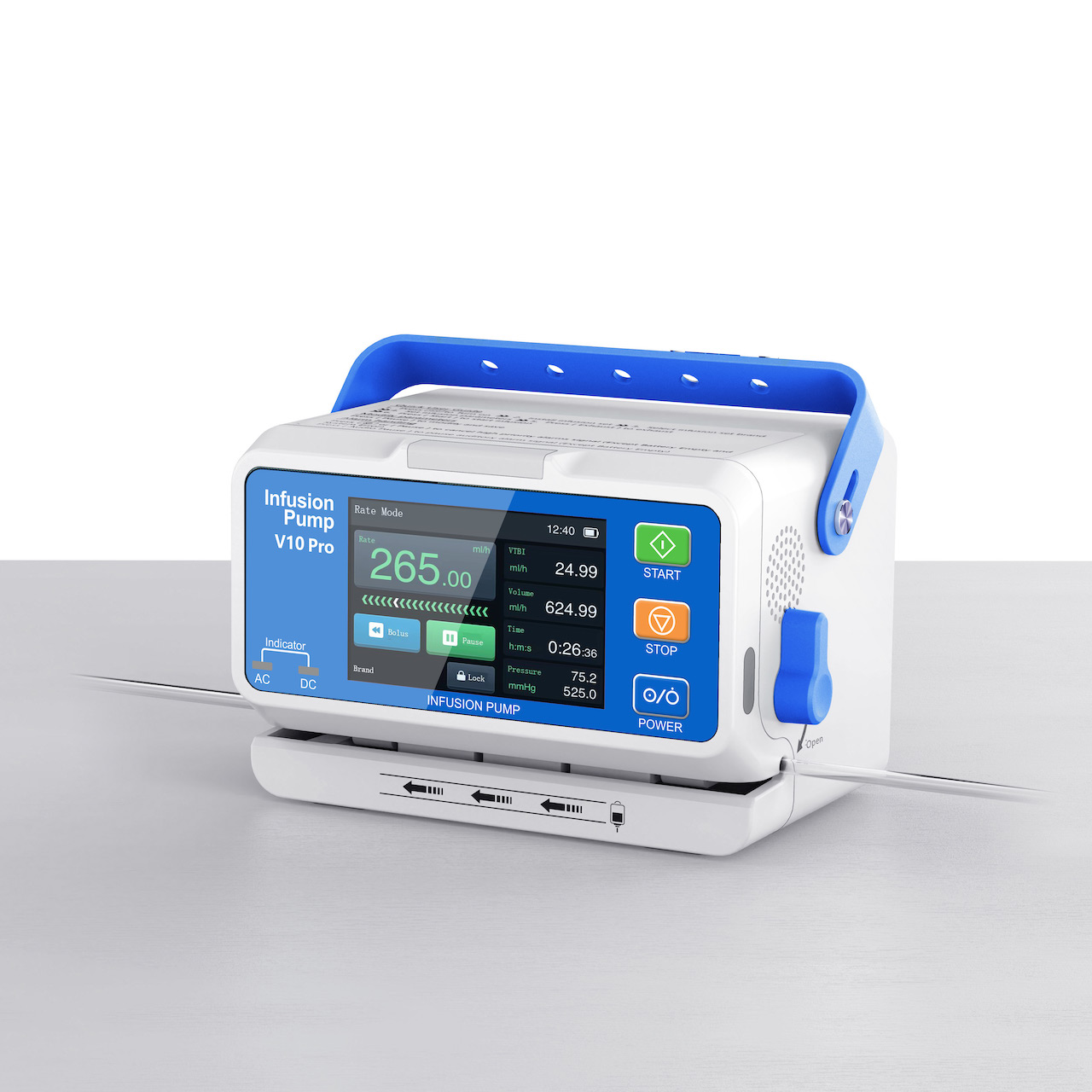

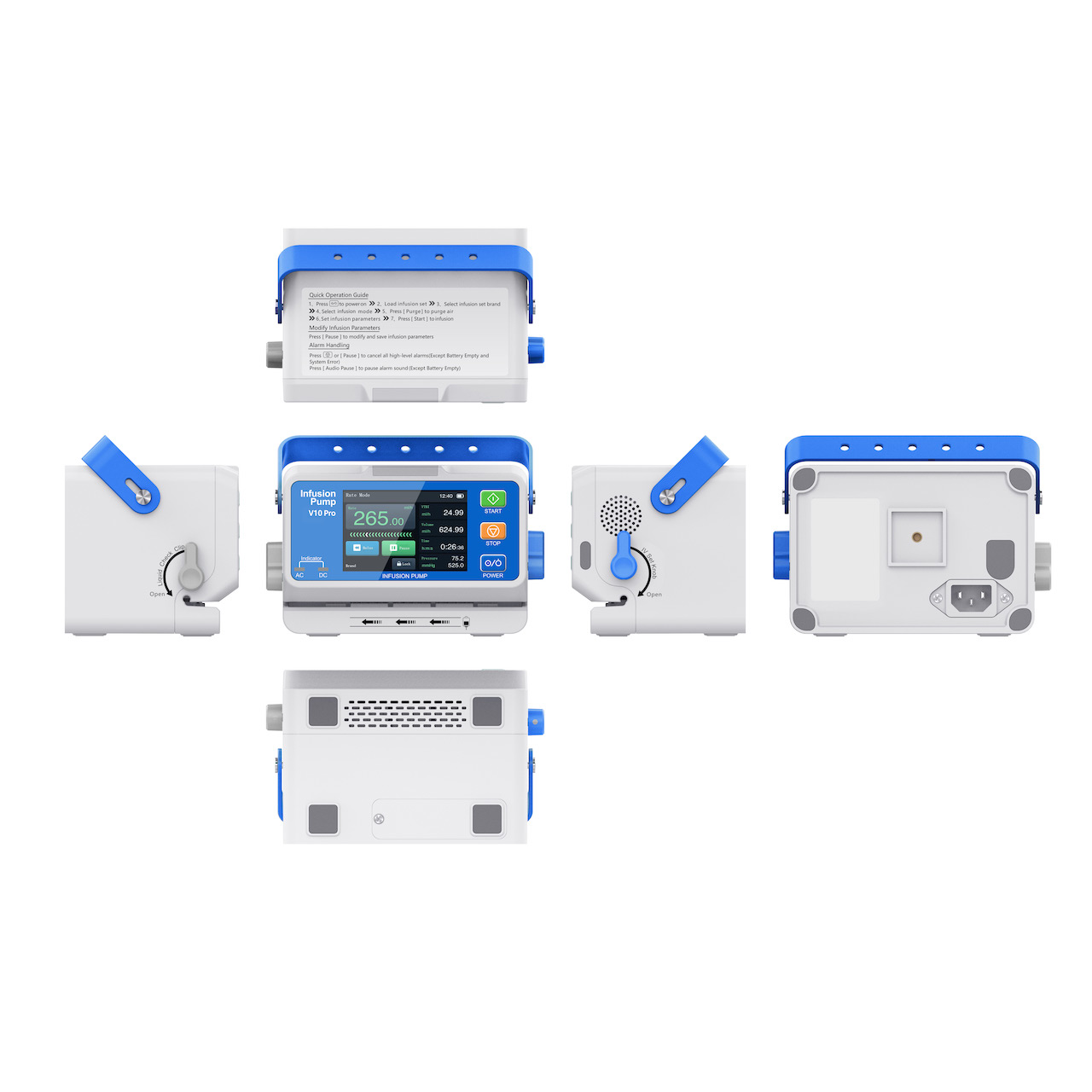

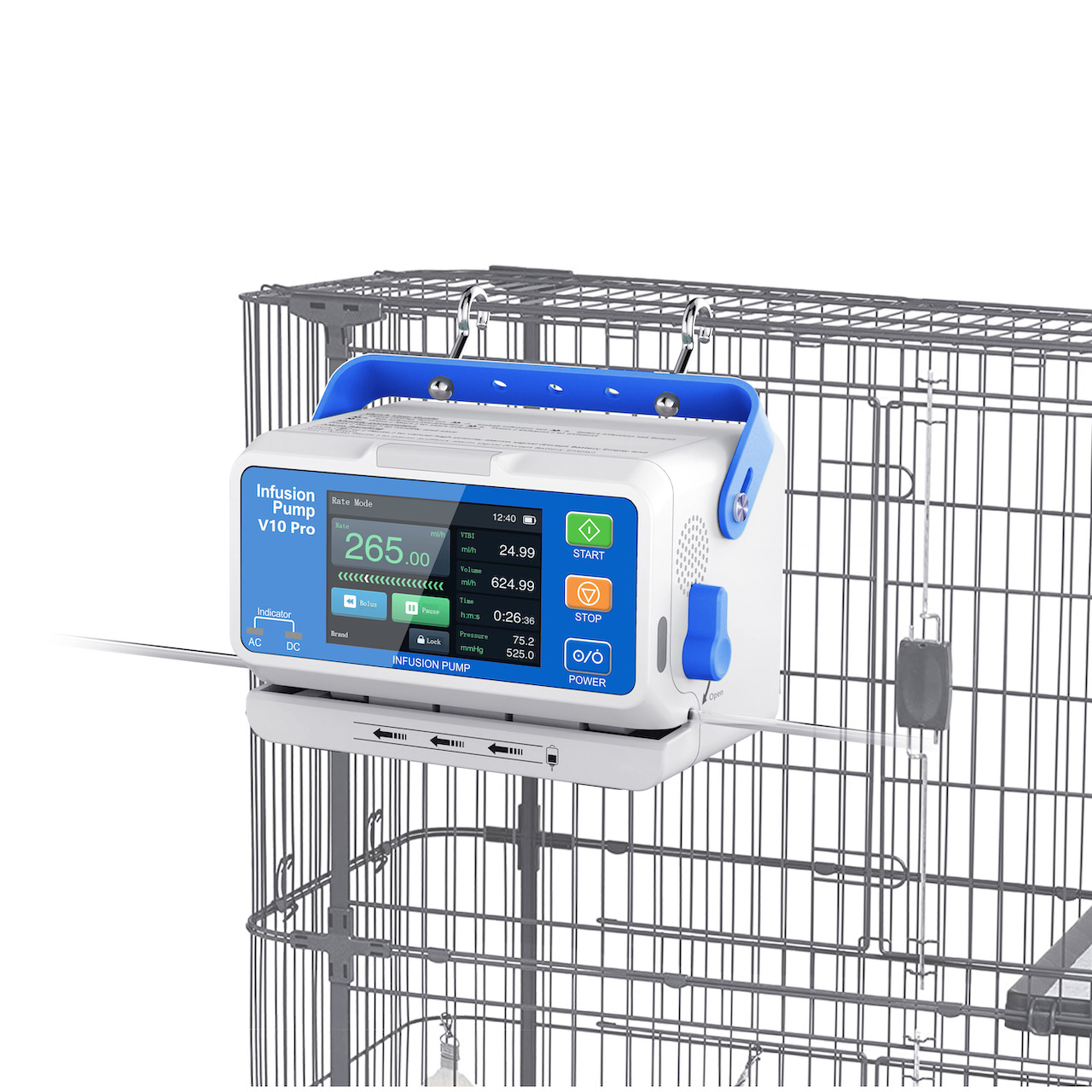

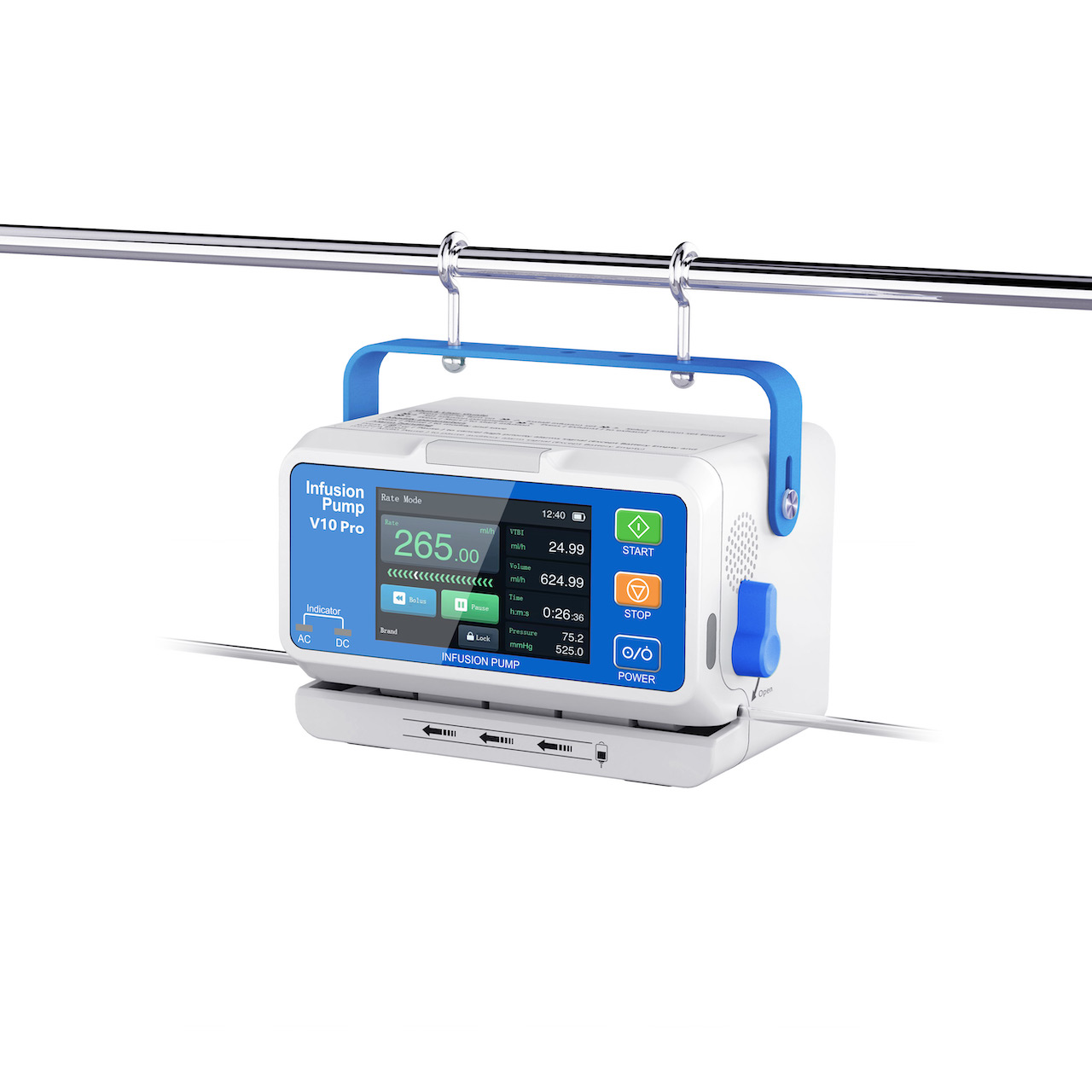

V10 Pro infusion pump
l 3.5inch color touch LCD display with text and image
l ±5% high accuracy to make sure safe infusion
l KVO&anti-bolus function
l Up to 10hrs battery back up
l 5 infusion models satisfy
l Unique doorless design, visible place the IV set directly, convenient and quick.
l Reduce the bubbles error alarm because horizontal place the IV set design
l 1.3KG weight only, convenient to carry and transport
l DPS dynamic pressure monitoring, real-time display of current pressure value
l Use German high-end medical grade motor drive chip, the unique patented silent technology reduces noise to 12db, keep stable operation at high and low speed, anti-shake, power saving, Micro-stepping and more accurate infusion, reduces resonance, saves energy and reduces consumption , and efficiently cools down to keep the motor at a constant temperature.
l New independent 3 stage peristaltic device design with exclusive patented technology and first one in the global market, which it making infusion set stress evenly and improving infusion accuracy and extending the life of infusion pump and IV set , reduce workload and make the patient more comfortable in the infusion process
|
Specification |
VP X10 Pro |
|
Dimension |
165*103*100mm |
|
Weight |
1.3kg |
|
Display |
3.5inch color touch screen |
|
Flow rate accuracy |
±5% |
|
Flow rate |
0.1~1200.00ml/h(with increment 0.01ml/h) |
|
VTBI |
0.0-9999.99ml(Time:1s-99h59min) |
|
Concentration calculate |
Automatically |
|
Bolus rate & setting |
0.1~1200ml/h (Automatic/Manual) |
|
Bubble size: |
Adjustable 50/100/250/500/800 μl. Ultrasonic detection. Occlusion pressure detection: Adjustable Low /Medium /High. Down Pressure detection. |
|
KVO rate |
0.1~5.0ml/h (with increment 0.01ml/h) |
|
Infusion modes |
Rate mode/Time model/Weight Model/Sequential Model/Drip Setting |
|
IV Set |
2 built-in brand for choice, and can user defined. (Common IV set / Specified IV set / Light-proof IV set / Precision IV set.) |
|
Handle |
included |
|
Drug library |
Expecting available in July, 2023 |
|
Purge |
0.1-1200ml/h. |
|
Titration |
Yes |
|
Micro mode |
Yes |
|
Standby mode |
Yes |
|
Screen lock |
Yes |
|
Occlusion levels |
3levels |
|
DPS & DERS |
Yes |
|
Anti-bolus |
Automatically reduce the tube pressure when the tube is blocked |
|
Records |
More than 2000 entries |
|
Alarms |
Air in line/Downstream occlusion /Upstream occlusion/No battery/VTBI completed/KVO finished/System Error/No infusion tube/Standby time expired/Reminder/Low battery/No battery inserted/Time near end/No AC power , |
|
Safety |
|
|
Power supply |
AC: 100~240V, 50/60HZ DC: 12~15V, |
|
Battery life |
3000mAh, 10hrs@ 25ml/h speed |
|
Charging time |
10hrs |
|
Classfication |
Class I, CF |
|
IP level |
IP34 |
|
Double CPU |
Safe and reliable |
|
IrDA |
Yes |
|
Data interface |
USB |
|
Drop sensor |
supported |
|
Wireless |
|
|
DC input |
supported |
|
RS232 |
|
|
Nurse call |
|
